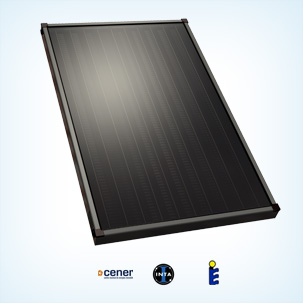

Technical Specifications of the Panels – AA and AES
|
|
Model
|
AA 950
|
AA 1200
|
AES 950
|
AES 1200
|
|
Dimensions
|
950x1950 x105(mm)
|
1200x1950x105
(mm)
|
950x1950x105
(mm)
|
1200x1950 x105
(mm)
|
|
Net absorption area
|
1,57 m2
|
2,07 m2
|
1,57 m2
|
2,07 m2
|
|
Insulation
|
Bottom : 50 mm Rockwool coated with glass tissue
Sides : 20 mm glasswool with glass tissue
|
Bottom : 50 mm glasswool coated with glass tissue
Sides : 20 mm. glasswool with glass tissue
|
|
Conductor
|
Copper absorbers welded to copper tubes by ultrasonic welding method
|
|
Absorber Coating
|
Highly selective tinox coating
a: ,95 e: ,05
|
Solar matt paint
a:,95 e:,70-90
|
|
Glass (4 mm.)
|
Low-iron tempered (Prismatic)
|
Tempered
|
|
Glass Characteristics
|
Transmissivity %91
Reflexivity + Absorbtivity %9
|
Transmissivity %83
Reflexivity + Absorbtivity %17
|
|
Casing
|
Electrostatic painted extra-durable
aluminum extruded profile
|
|
Bottom
|
Embossed Aluminum Sheet
|
|
Number of Tubes
|
8
|
10
|
8
|
10
|
|
Headers / Tubes
|
Ø 22 - 10 mm --- Ø 28 - 12 mm
|
|
Weight
|
33 kg.
|
43 kg.
|
33 kg.
|
43 kg.
|
|
Fluid Capacity
|
1,6 lt.
|
2,2 lt.
|
1,6 lt.
|
2,2 lt.
|
